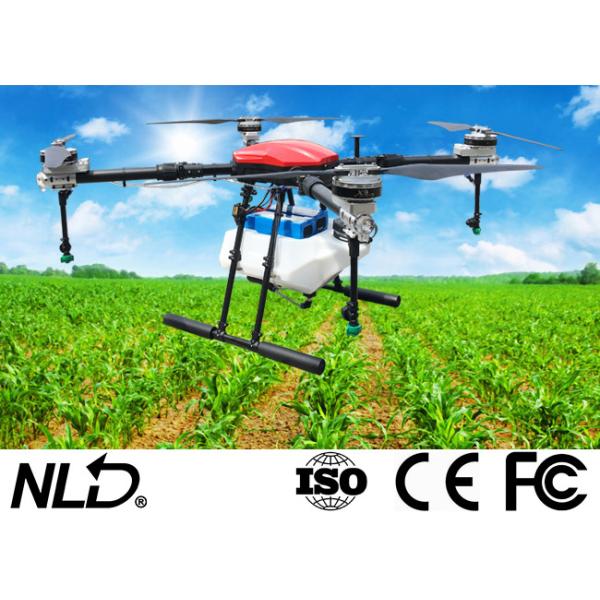

Carbon Fiber Agriculture Spraying Drone NLA-410 10L Pesticide Tank 4 Rotors

Product Categories

NEW LANDLE TECHNOLOGY CO.,LTD

Contact Now

Brand Name : NLD

Model Number : NLA-410

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Aluminum Box

Type : 10L Agriculture Spraying Drone

Aircraft Frame : 4 rotors

Flight controller : 2CPU + 3 IMU

Foldable propeller : 3090

Hovering accuracy horizontal : +/- 1.5m

Hovering accuracy vertical : +/- 0.5m

Contact Now

NLA-410 10L Pesticide Tank Carbon Fiber Agriculture Spraying Drone

Model	NLA410	NLA416
Rotor	4	4
Hovering accuracy horizontal	+/- 1.5m	+/- 1.5m
Hovering accuracy vertical	+/- 0.5m	+/- 0.5m
Wind resistance	4～5	4～5
Motor	4*100KV	4*110KV
Electronic Speed Control	80A	120A
Motor applicable temperature	-20～50	-20～50
Foldable propeller	3090	3411
Pesticide Tank	10L	16L
Take-off Capacity	28kg	38kg
Flying Time (with payload)	15~20min	15~20min
Flying distance	5000m	5000m
Working distance	2000m	2000m
Flying Speed	0~10m/s	0~10m/s
Spray Width	3~3.5m	3~3.5m
Spray Flow	1.2~2L/min	1.2~2L/min
Spray Efficiency	1000~2100sqm/min	1000~2100sqm/min
Expand Size	17801780567mm	18481848628mm
Wheelbase	1362mm	1416mm
Folded Size	700658567mm	648671628mm
Battery / Quantity	6S/16000mAh / 2pcs	6S/22000mAh / 2pcs
FPV Camera	Optional	Optional
Obstacle avoidance radar	Optional	Optional
Terrain following radar	Optional	Optional
RTK centimeter positioning	Optional	Optional

Carbon Fiber Agriculture Spraying Drone NLA-410 10L Pesticide Tank 4 Rotors

J-RTK centimeter-level precision positioning system

J-RTK is a new generation of high-precision navigation and positioning system.
It uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters.
It makes up for the deficiencies of traditional GPS and barometer solutions, and provides accurate and reliable positioning solutions for high-precision applications.
J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference.
It can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.

Characteristic:

Centimeter-level positioning accuracy, powerful multi-path effect and interference suppression technology.
High sensitivity, stable and reliable.
Dual antennas with high precision orientation and strong anti-magnetic interference

Ground Defense Radar

Ground defense radar uses millimeter-wave radar technology.
Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrian and the crop height to realize the ground defense flight and ensuring uniform spraying in flight.
Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

Characteristic:

Strong penetration, not affected by light.
Stable performance with detection range of 15m.
Strong anti-interference ability and good environmental applicability.
Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.
